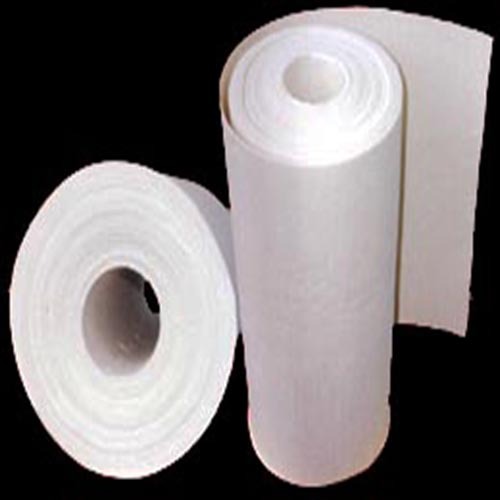

Ceramic fiber paper

No.WCP

Thickness: 1mm - 6mm Density: 200kg/m3 Width: 610mm, 1220mm Length: 10m - 60m Color: white Temperature service up to 1260deg C

GET A QUOTE

Description

Produced from an extremely pure alumina-silicate ceramic fiber
An alternative to asbestos
It features high temperature, chemical corrosion resistance, thermal shock stability and low thermal conductivity
It has low density, high strength, good resiliency and excellent sound absorbing property
Can be die-cut or stamped
Used at 2300°F / 1260°C continuously, molts above 3000°F / 1650℃

Application
Common applications for this paper include asbestos paper replacement, investment cast mold wrap insulation, one-time consumable insulating applications, back-up lining for metal though, hot top lining, applications where low binder content is required, thermal and electrical insulation, upgrade for fiberglass paper and blanket products.

2300°F / 1260°C continuous rating, high insulation value & excellent personnel protection

Specificaiton

2300°F / 1260°C: Ceramic Fiber Paper
Classification temperature °C	1260
Working temperature °C	1000
Density Kg/m3	200±15
Thermal conductivity by mean temp. (W/m.k) (Density 200kg/m3)	200 °C	0.075-0.085
	400 °C	0.115-0.121
	600 °C	0.165-0.175
Organic content (%)	6--8
Chemical content (%)	Al2O3	45-46
Chemical content (%)	Al2O3+SiO2	51-52
Size	Length	10m,20m, 30m,40m
	Width	0.61m, 1.22m
	Thickness	1mm-10mm

Bio soluble Ceramic fiber paper is available, pls send email to us for price reference.
