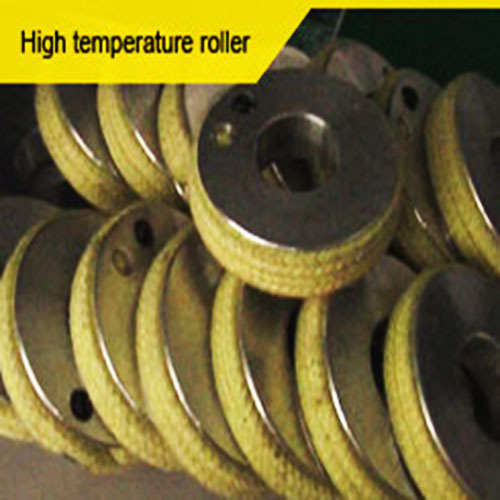

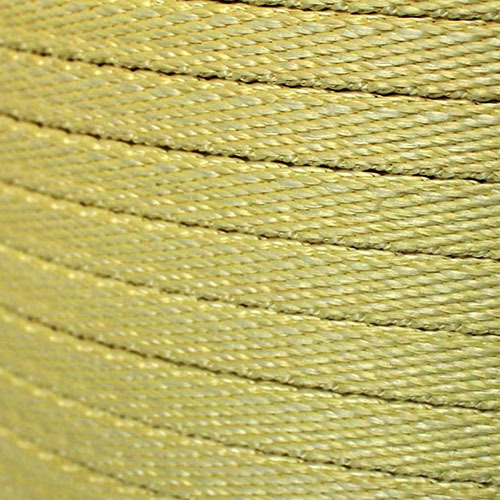

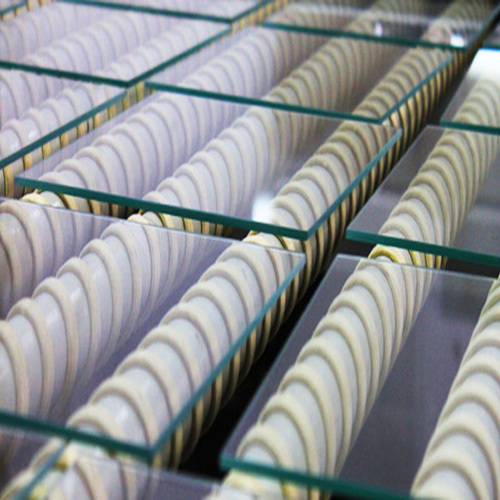

Spiral wound tempering furnace for quickly delivery of high temperature glass. The glass after heating in the high temperature tempering furnace, then rapid cooling and output from the wind gate. Roller tape plays a important role in protect high temperature glass when it exposed to low temperature metal roller without cold explosion and no scratches.
Specification
| Size (mm) |
Weight (g/m) |
Packing (m/roll) |
|---|---|---|
| 8 * 2 | 16 | 500 |
| 8 * 3 | 25 | 350 |
| 8 * 4 | 30.5 | 300 |
| 9 * 3 | 36 | 250 |
| 9 * 4 | 108 | 100 |
| 10 * 3 | 108 | 100 |
| 10 * 4 | 108 | 100 |
| 12 * 3 | 108 | 100 |
| 12 * 4 | 108 | 100 |
| 12 * 5.5 | 108 | 100 |
| 13 * 3 | 108 | 100 |
| 13 * 4 | 108 | 100 |
| 14 * 3 | 108 | 100 |
| 14 * 4 | 108 | 100 |
Application

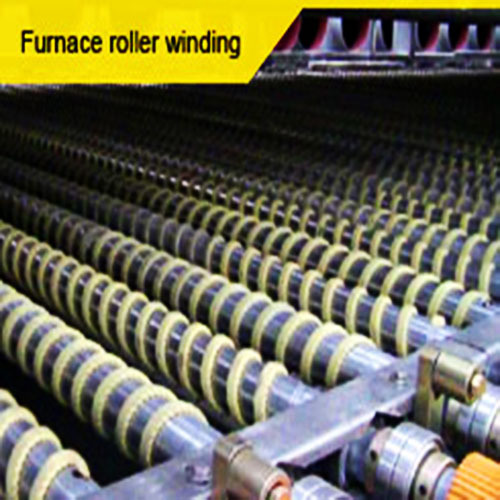

Glass tempering furnace roller converyor are mainly suitable for glass tempering furnace roller transmission, tempering furnace roller winding, industrial furnace insulation, etc.
