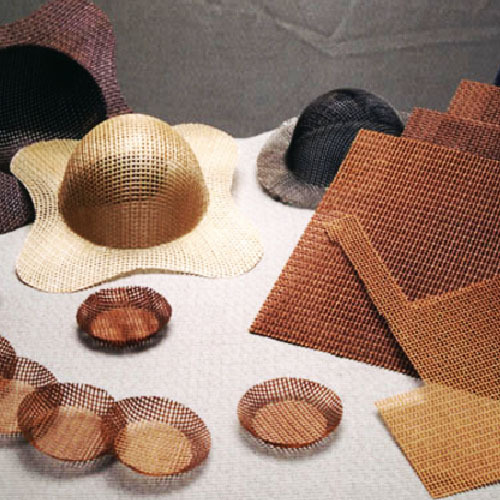

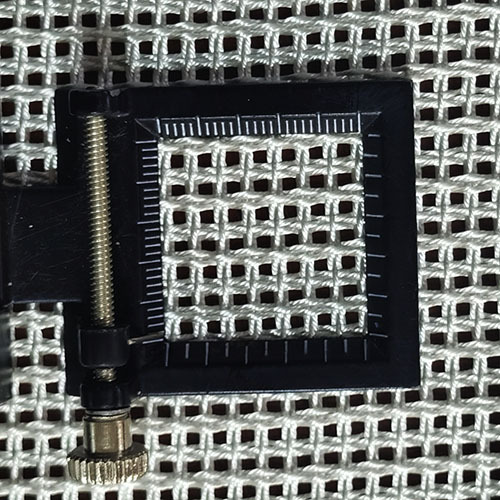

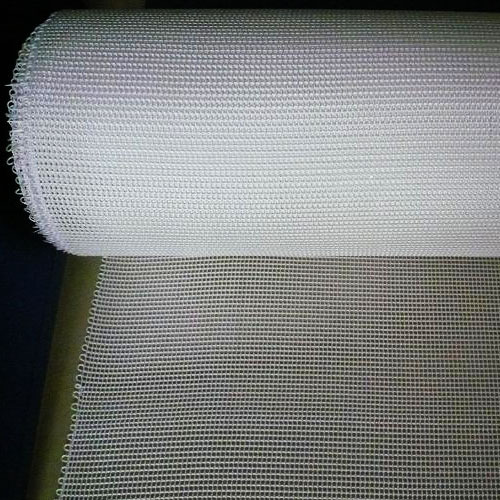

Silica mesh fabric for molten metal filtration

No.WSM

Size: 1.5x1.5mm, 2x2mm, 2.5x2.5mm Width: 920mm Length: 50m, 100m SiO2 content: 96% Temperature service up to 1100deg C Molten temperature 1700deg C

GET A QUOTE

Description

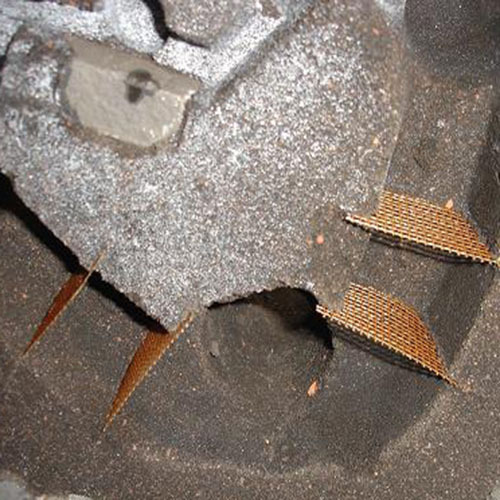

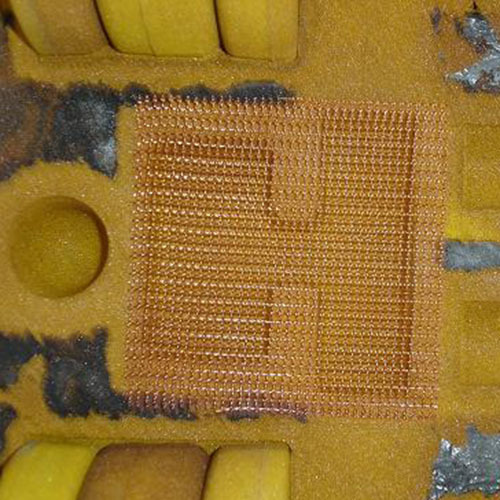

Silica filtering scrim for foundry is made from silica fiber scrim or mock leno scrim with high temperature resistant surface coating. It used as filtration for molten metal, can improve quality of coasting. Silica filtering scrim has good properties of high temperature resistant, scour resistance, low gas evolution, easy to use and economic. It’s suitable for grey cast iron, nodular cast iron and small size cast steel casting filtration.

Style	Width mm	Weight g/m2	Mesh mm	Breaking strength		porosity %	SiO2Content %	Weave
				N/25×100mm
				Warp	Weft
BNT1.5×1.5-83	83±3	135±14	1.5×1.5	≥90	≥80	55	≥96	leno
BNT2×2-83	83±3	125±13	2.0×2.0	≥85	≥70	65	≥96	leno
BNT2.5×2.5-83	83±3	110±11	2.5×2.5	≥68	≥62	70	≥96	leno
BNT1.5×1.5-83 M	83±3	380±38	1.5×1.5	≥300	≥250	19	≥96	Mock leno
BNT2×2-83 M	83±3	350±35	2.0×2.0	≥250	≥200	24	≥96	Mock leno
BNT2.5×2.5-83 M	83±3	310±31	2.5×2.5	≥200	≥150	33	≥96	Mock leno

Mesh size available: 0.6x0.6, 0.8x0.8, 1.0x1.0, 1.2x1.2, 1.5x1.5, 2.0x2.0, 2.5x2.5mm.

Features:
► SiO2≥96%
► Soft point nearly 1700℃, long-period service at 900℃
► Low thermal conductivity
► Good chemical stability
► Good electrical insulation
► Low thermal shrinkage
► Non-asbestos product without pollution
► Good process performance
