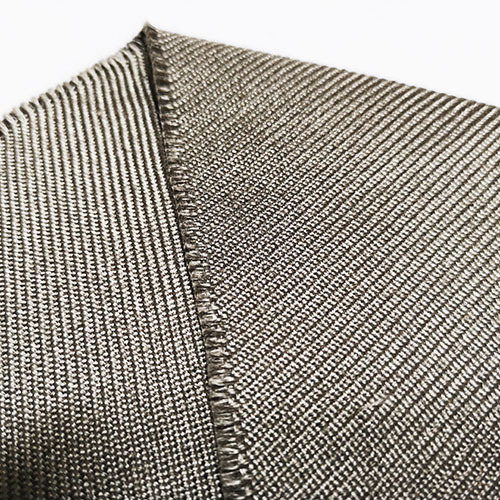

| 1200°F / 648°C: Stainless Steel Fiber Woven Fabric | ||||||
| Part number | WKW580 | WKW650 | WKW800 | WKW980 | ||
| Material | SUS 316L | |||||
| Weave | Twill | |||||
| Filament diameter(μm) | 8 | 8 | 8, 12 | 8, 12 | ||
| Yarn count(Nm) | 16 Nm /2 | 12 Nm /2 | 8.6 Nm /2 | 6 Nm /2 | ||
| Thickness (mm) | 0.5±0.05mm | 0.65±0.05mm | 0.68±0.05mm | 0.75±0.05mm | ||
| Width (cm) | 100, 120, 150, 160 (±2%) | |||||
| Length(m) | 10 | |||||
| Weight (g/m2) | 580 (±3%) | 650 (±3%) | 800 (±3%) | 980 (±3%) | ||
| Ventilation Property(mm/s) | 1200(±8%) | 1180 (±3%) | 1100 (±3%) | 950 (±3%) | ||
| Melting Point | 1380℃ | |||||
| Thermal Resistant | 648℃ | |||||
| Chemical Composition of Raw Materials (%) | |||||||||
| SUS 316L | C | Si | Mn | Ni | Cr | Mo | N | S | P |
| 0.02 | 0.60 | 0.82 | 11.1 | 16.9 | 2.04 | 0.03 | 0.0005 | 0.027 | |
