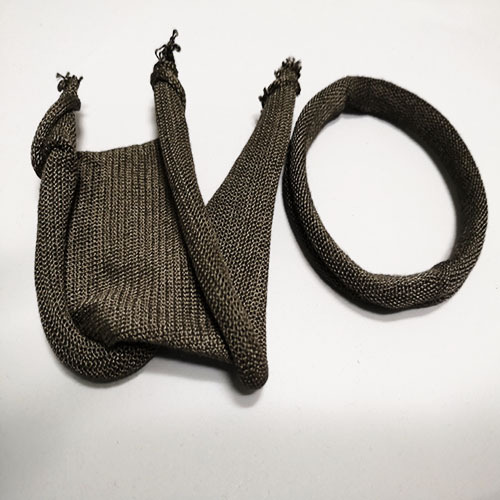

| 1200°F / 648°C: Stainless Steel Fiber Knitted Fabric | |||||
| Part number | WKN780 | WKN950 | WKN1470 | WKN1010 | WKN960 |
| Material | SUS 316L | ||||
| Weave | Knitted | ||||
| Thickness (mm) | 1±0.1mm | 1.1±0.1mm | 1.6±0.16mm | 1.2±0.12mm | 1.1±0.1mm |
| Width (cm) | 150 (±2%) | ||||
| Length(m) | 10 | ||||
| Weight (g/m2) | 780 (±3%) | 950 (±3%) | 1470 (±3%) | 1010 (±3%) | 960 (±3%) |
| Ventilation Property(mm/s) | 8600(±8%) | 6600 (±8%) | 6400 (±8%) | 5200 (±8%) | 5700 (±8%) |
| Elongation(Warp) | 89% | 58% | 49% | 36% | 56% |
| Elongation(Weft) | 38% | 38% | 20% | 15% | 30% |
| Melting Point | 1380℃ | ||||
| Thermal Resistant | 648℃ | ||||
| Chemical Composition of Raw Materials (%) | |||||||||
| SUS 316L | C | Si | Mn | Ni | Cr | Mo | N | S | P |
| 0.02 | 0.60 | 0.82 | 11.1 | 16.9 | 2.04 | 0.03 | 0.0005 | 0.027 | |
