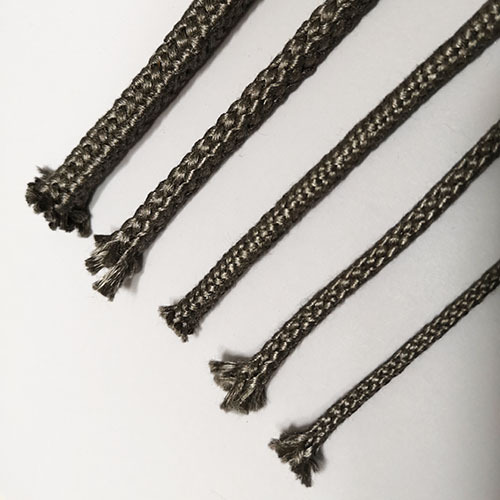

| 1200°F / 648°C: Stainless Steel Fiber Braided Rope (Hollow/Round/Square) |
||||||||||||
| Part number | WKR 131 |
WKR 161 |
WKR 231 |
WKR 232 |
WKR 241 |
WKR 242 |
WKR 251 |
WKR 252 |
WKR 261 |
WKR 262 |
WKR 331 |
WKR 361 |
| Material | SUS 316L / AISI 316L | |||||||||||
| Fiber Dia. (um) |
12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Weight (g/m) |
10 | 25 | 19 | 19 | 24 | 24 | 45 | 45 | 51 | 53 | 19 | 60 |
| Thickness (mm) |
3 | 6 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 3 | 6 |
| Layer | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 1 |
| Shape | Round | Square | ||||||||||
| Structure | Hollow | Solid | ||||||||||
| Length(m) | 50 | |||||||||||
| Chemical Composition of Raw Materials (%) | |||||||||
| SUS 316L | C | Si | Mn | Ni | Cr | Mo | N | S | P |
| 0.02 | 0.60 | 0.82 | 11.1 | 16.9 | 2.04 | 0.03 | 0.0005 | 0.027 | |
