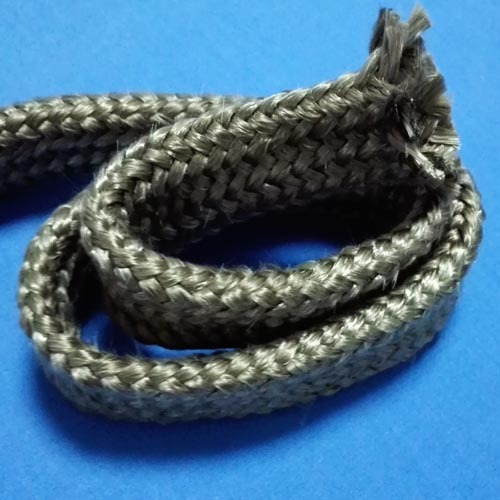

Texturized basalt fiber braided sleeve

No.WBS2

Diameter: 6mm - 125mm Braiding: overbraided tubular Texturized basalt fiber yarn Tatanium color Temperature service up to 650deg C - 980deg C

GET A QUOTE

Description

Produced of texturized basalt yarns trap greater amounts of air and demonstrates better insulation properties and greater fullness
Made by a tubular braiding to obtain a extremely elastic and flexible sleeve
Resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Used at 1200°F / 648°C continuous, maintains integrity at temperatures up to 1800°F / 982°C

Common applications
Used to protect wires, cables, hoses, piping and tubing from high temperatures.

Specification

1200°F / 648°C: Texturized Basalt Braided Sleeve
Part number	Diameter(mm)	Wall thickness(mm)	Weight(g/m)	Length(m)
WBS210	10	2	70	100
WBS212	12	2.5	118	50
WBS216	16	2.5	145	50
WBS220	20	2.5	176	50
WBS225	25	2.5	205	50
WBS232	32	2.5	256	50
WBS240	40	2.5	343	30
WBS245	45	2.5	382	30
WBS250	50	2.5	418	30
WBS260	60	2.5	495	30
WBS275	75	2.5	597	30
WBS2125	125	2.5	990	20

Other sizes are available.
Wall thickness can be 2mm, 3mm.
Weight can be made by customers’ request.
